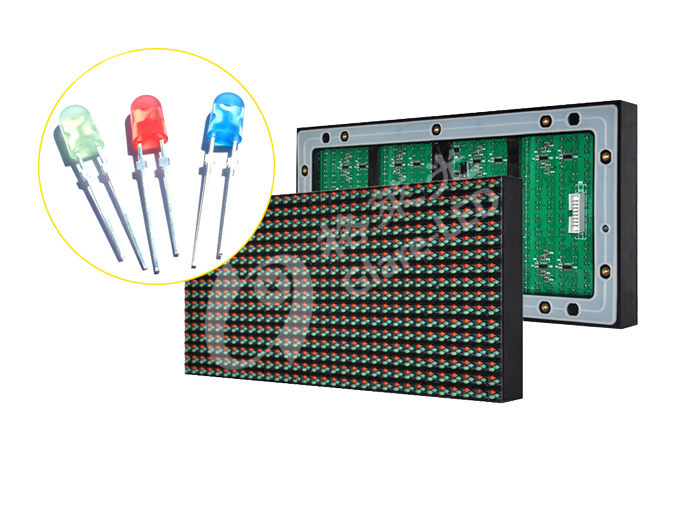

320x160x32mm P20 Dip Led Display Module For Outdoor Advertising HUB40 Port

Brand Name : Glare-LED

Model Number : GLG-TDL-200F

Place of Origin : Guangdong, China

Price : Negotiable

Type : LED

Panel Size : 320*160*32mm, 320*160*32mm

Application : Outdoor, Expressway Tunnel, Urban Road

use : advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, education, medical treatment

Media Available : datasheet, Photo

Color : 2r 2r1g 1r1g1b

Pixels : Other, Other

Item name : P20 Full color Module

Pixel configuration : 1R1G1B

Input voltage : 5V

weight : 770g

Max current : 4.2A

Viewing angle : >70°

Brightness : 8000CD/㎡, 8000CD/㎡, 8000CD/㎡

HUB Port : HUB40

Module Resolution : 16*8Dots

Item size : 320*160*32mm

Supplier Type : Original manufacturer

Specification : 16*8

HS Code : 4531200000

Resolution : 16*8

Contact Now

320*160*32mm Panel Size P20 Dip Led Display Module for Outdoor Advertising HUB40 Port

320x160x32mm P20 Dip Led Display Module For Outdoor Advertising HUB40 Port
Products Overview
320x160x32mm P20 Dip Led Display Module For Outdoor Advertising HUB40 Port
Outdoor DIP LED Module is for outdoor advertsing.with high definition and high brightness and long viewing distance.With 10000 dots per square meters of Outdoor Full color LED Display panel PH10 of which the pixel size is 10mm. The grayscale of each is
16384, and 16,777,216 kinds of colors in total. Dynamic scanning technology is adopted to ensure the purity and stability of picture effects, the precision of display effect and variety of animation; cabinets are made of aluminum alloy, so it's much lighter and better heat dissipation system. On the other hand, LED panel can display text, pictures, animation as well as video.
Advantages
320x160x32mm P20 Dip Led Display Module For Outdoor Advertising HUB40 Port
Product Parameter
Pixel Pitch
Pixel Config
Resolution
Package
Power
Visual Angle
Brightness
Module Size
P10
1R1G
16*32
347
215W/m2
70°
7000cd/m2
160*320
2R1G
170W/m2
8000cd/m2
1R1G1B
292W/m2
8000cd/m2
P16
2R
8*16
347
125W/m2
70°
5000cd/m2
128*256
2R1G
8*16
347
185W/m2
30°
8000cd/m2
160*320
1R1G1B
8*16
347
305W/m2
30°
8000cd/m2
160*320
2R
16*16
347
125W/m2
70°
5000cd/m2
256*256
2R1G
347
185W/m2
8000cd/m2
1R1G1B
347
305W/m2
8000cd/m2
P20
2A
8*8
347
130W/m2
70
5000cd/m2
160*320
P25
2R1G
8*8
347
198W/m2
30°
8000cd/m2
200*200
P25
2R1G1B
8*8
347
297W/m2
30°
8000cd/m2
200*200
Quality Control Process
320x160x32mm P20 Dip Led Display Module For Outdoor Advertising HUB40 Port
Package Method
320x160x32mm P20 Dip Led Display Module For Outdoor Advertising HUB40 Port
Products application
320x160x32mm P20 Dip Led Display Module For Outdoor Advertising HUB40 Port
5 meters traffic led display being composed of led modules
320x160x32mm P20 Dip Led Display Module For Outdoor Advertising HUB40 Port
10 meters traffic led display being composed of led modules
320x160x32mm P20 Dip Led Display Module For Outdoor Advertising HUB40 Port
Traffic variable message sign
Company Profile
320x160x32mm P20 Dip Led Display Module For Outdoor Advertising HUB40 Port
320x160x32mm P20 Dip Led Display Module For Outdoor Advertising HUB40 Port
320x160x32mm P20 Dip Led Display Module For Outdoor Advertising HUB40 Port
Project Case
320x160x32mm P20 Dip Led Display Module For Outdoor Advertising HUB40 Port
320x160x32mm P20 Dip Led Display Module For Outdoor Advertising HUB40 Port
FAQ
Q: What do the gas price display come with? A: Pixel tube cluster signs the control card power supply are inside the cabinets . no need control box anymore. Q: What is the warranty policy should the led price billboards arrive damaged? A: We are pleased to offer our convenient warranty policy. Q: How long do gas price signs last? A: Our signs can last an average of 6 years Q: Can you provide finished product solution for exhibition or bid? A: Yes, we can, we have in this trade with 10year experience , and almost 30R&D Dept. Q: Can you provide the digital board as the size of customing? A: Yes, of course, but our size already so much. If you want custom please contact LED Gas Signs Customers.
